    Baldusi Autococker Spec Thread.

    I'm working on specifying the Autococker. I've done a complete pump and the pneumatic semi only needs the HPR and LPR. For now, I've made a blueprint for the front block and back blocks. Complete CAD of bodies are plenty, but the rest of the stuff is what's missing. So I will go and upload those that I finish. Of course these are my measures, lack any tolerance information and are, at best a guess.
    If there is any mistake, it is my own. And please if somebody more knowledgeable finds an error or knows the spec better, please tell me so I can update this blueprints.

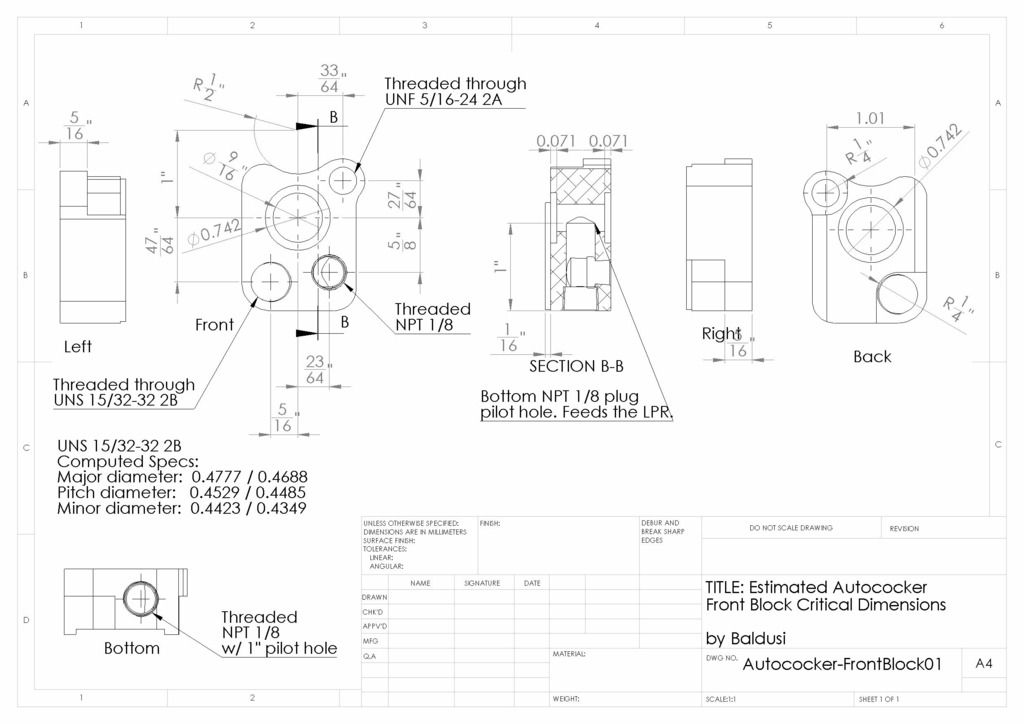

    Front Block

    Back Block

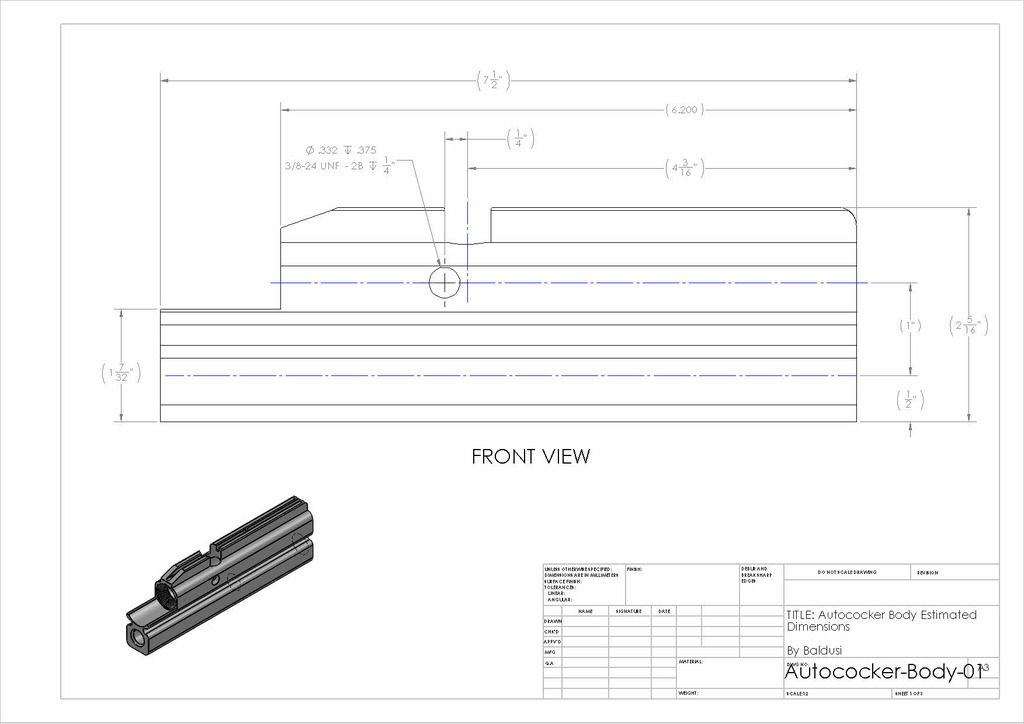

    Body Page 1

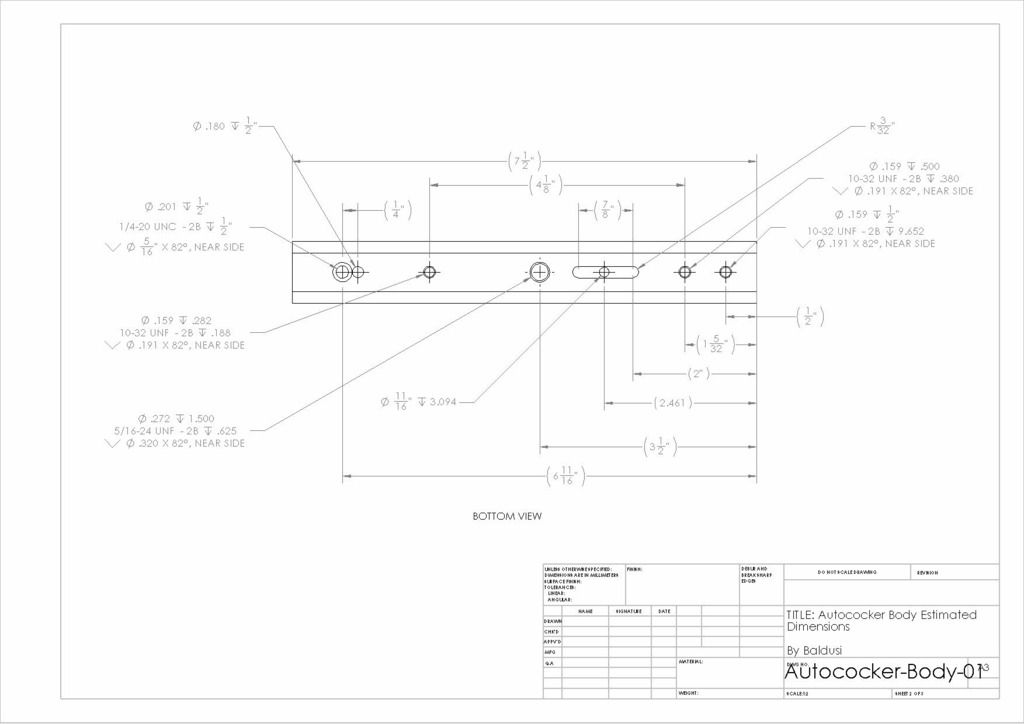

    Body Page 2

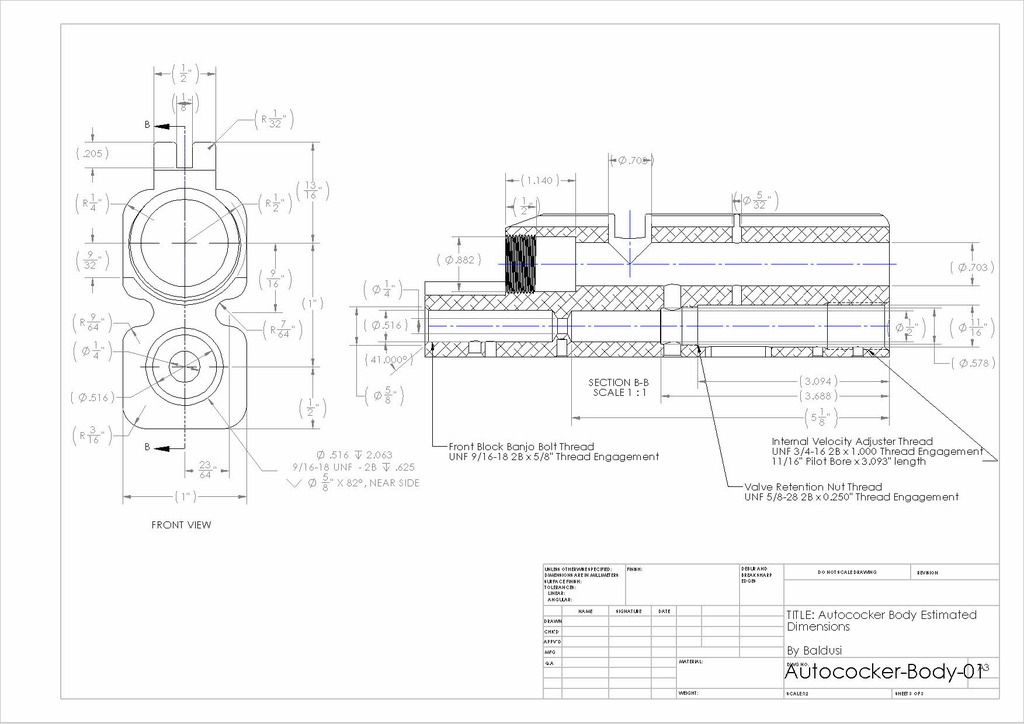

    Body Page 3

  2. #2
    Join Date
    Nov 2011
    Ontario, NY
    I can't see these pics. Any chance you could send them to me?
